Brief Introduction

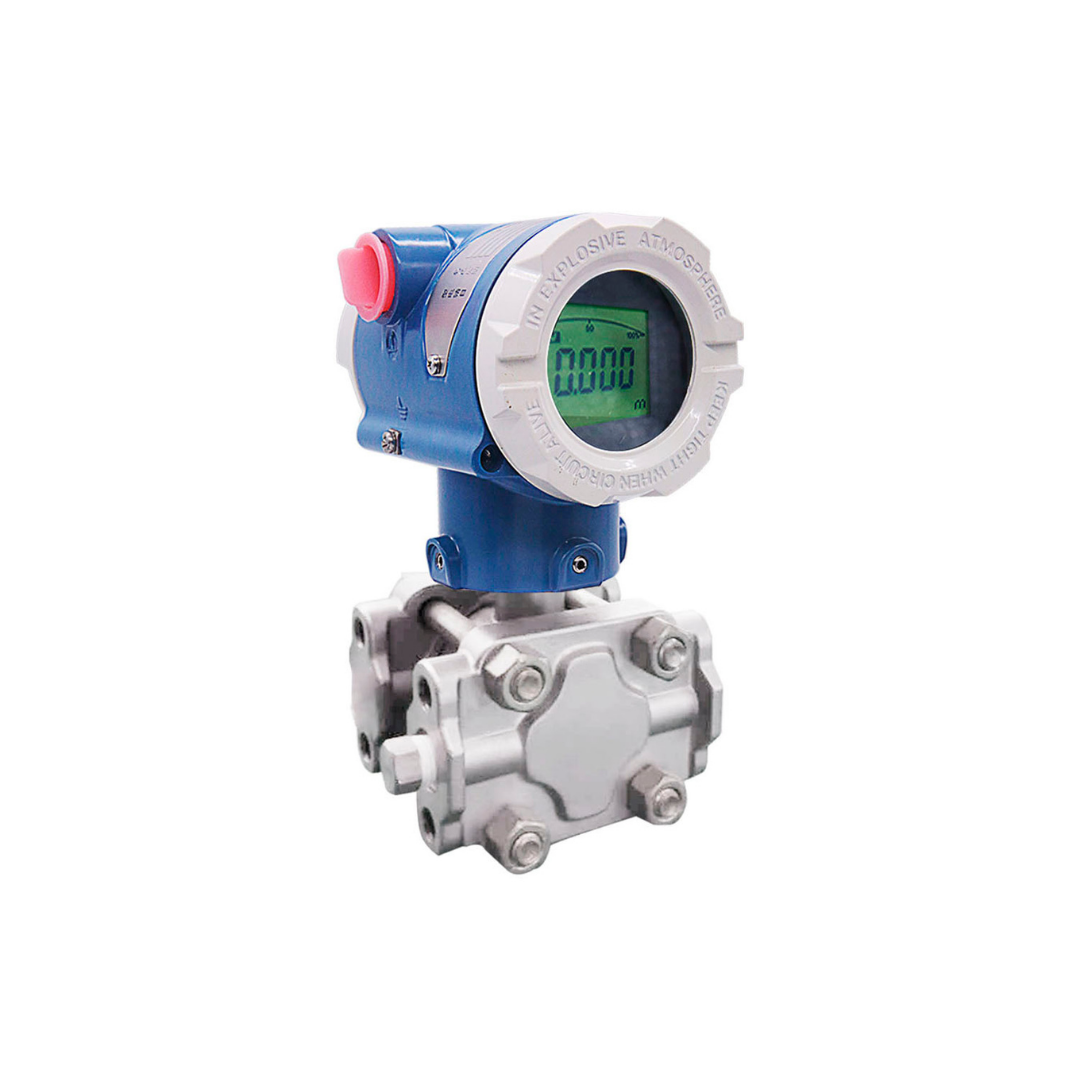

Differential pressure transmitter/pressure transmitter is a measure of the difference between the two ends of the transmitter ,output standard signal ( 4 ~ 20mA) differential pressure transmitter and pressure transmitter with the general difference is that there are two pressure ports, the differential pressure transmitter is generally divided into positive and negative terminal end, under normal circumstances, Positive pressure side pressure should be greater than the negative pressure section.
Features
Process Fluid: Liquid, gas, or steam flow as well as liquid level, density and pressure
Measuring range: 200Pa-10MPa
Working Temperature: -25 to +95C
Current Output: 4 – 20 mA 2 wires Hart Protocol
Power Supply: 24VDC
Ambient Temperature: -25 to +120C
Process connections: 1/4 – 18 NPT or 1/2 – 14 NPT
Electrical Connections: 1/2”NPT or M20*1.5
Enclosure:IP65
Intrinsically Safe: ia II C T6
Explosion proof: d II B T5
Diaphragm material: SUS316L, Hastelloy C
Industry application
Process control system
Petroleum industry
Chemical industry
Power plant
