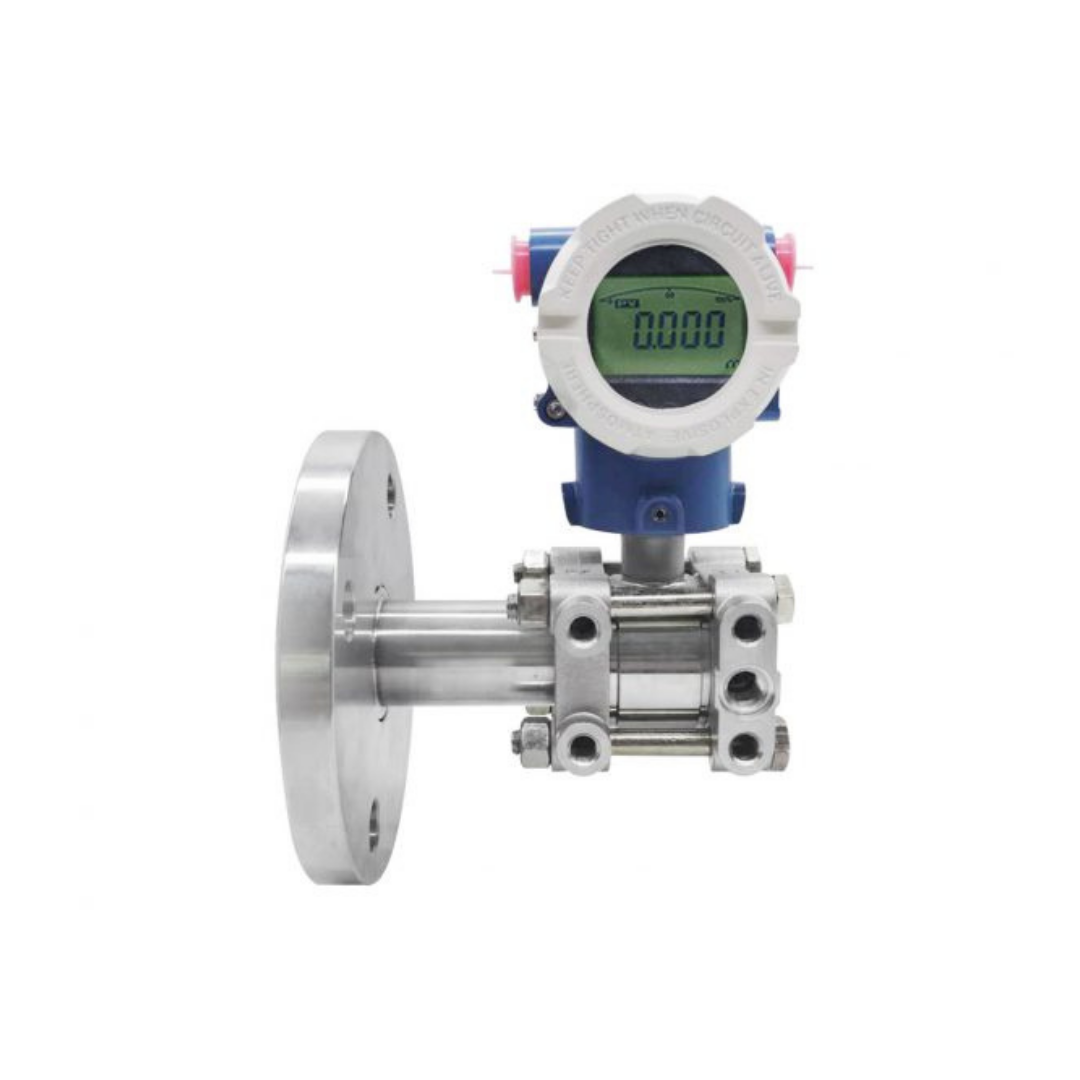

AT3051 LT Single Flange Level Transmitter

Brief Introduction

Flange level transmitter is used to measure level and density of liquids with solid and sediment,then convert into 4-20 mA current signal output.available to connect with Hart Protocol for data monitor and control.diaphragm pressure transmitter widely used in petroleum,chemical,metallurgy,electric power,food,paper, pharmaceutical, machinery,manufacturing and other industries.

Features

     Measuring range: 10KPa-2MPa
     Working Temperature: -25 to +95C
     Current Output: 4 – 20 mA   2 wires   Hart Protocol
     Power Supply: 24VDC
     Ambient Temperature: -25 to +120C
     Process connection: DN50PN16, DN80PN16, as required
     Electrical Connections: 1/2”NPT or M20*1.5
     Enclosure:IP65
     Intrinsically Safe: ia II C T6
     Explosion proof: d II B T5
    Diaphragm material: SUS316L, Hastelloy C,Tantalum

Industry application

    Process control system
    Petroleum industry
    Chemical industry
    Power plant
