Brief Introduction

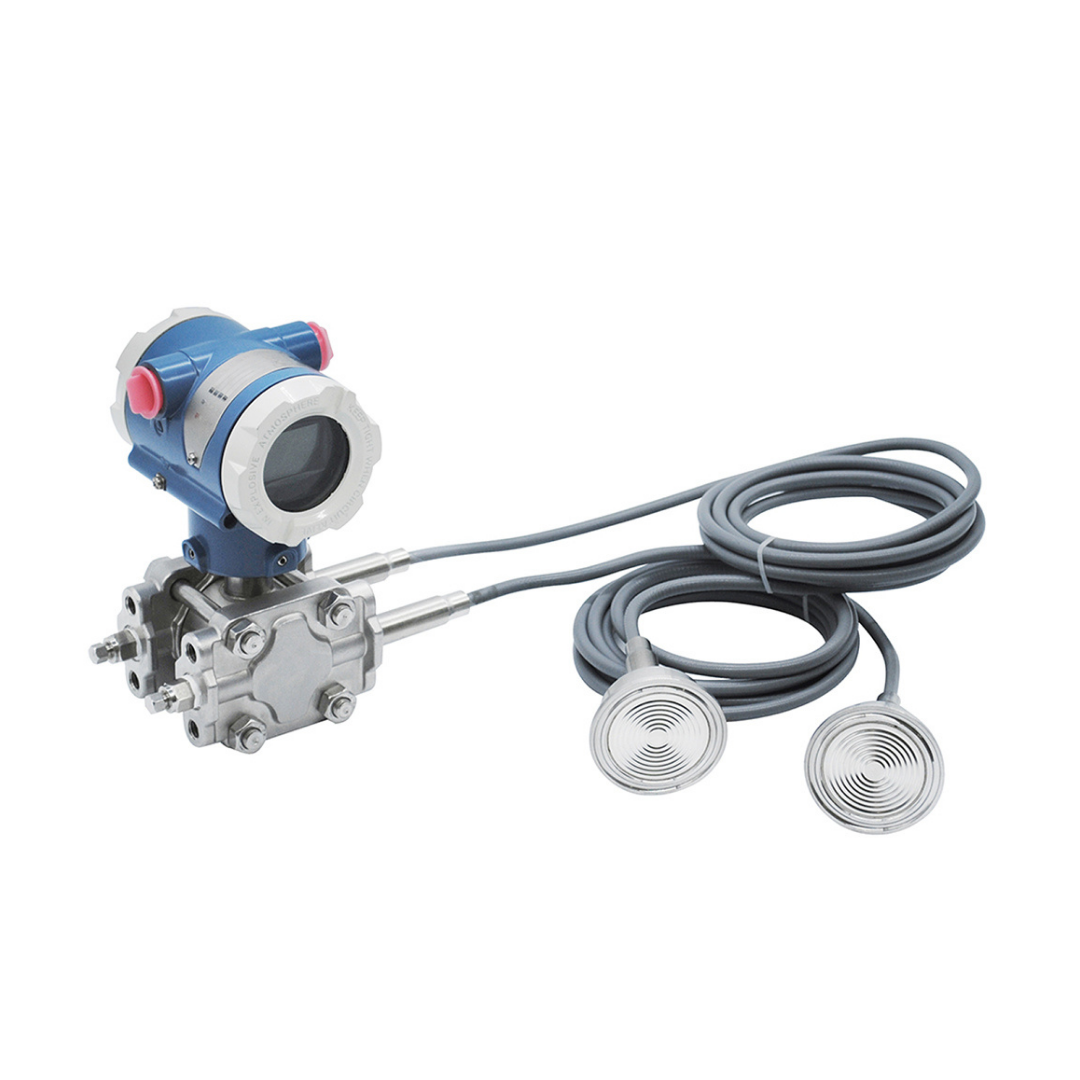

ATRD3051 remote level transmitter Differentail pressure transmitter for level measurement is used to prevent pipe directly into the transmitter in the medium pressure sensor assembly, between it and the transmitter is filled with fluid
by capillary connecting, ATRD3051RD remote pressure transmitter used to measure pressure liquid, gas
and steam, and then outputs the signal pressure corresponding 4-20mADC transmitted. ATRD3051RD remote level transmitter can communicate with each other HART Communicator, through its setting and monitoring.
Features
• Measuring range: 4kPa-2MPa
• Output signal: 4-20mA, 4~20mA/HART, customer
• Reference accuracy: ±0.2% URL, ±0.5% URL
• Media temperature: -40-120℃
• Measuring medium: pressure, level, differential pressure, density, interface, flow
• Protection class: IP66
• Diaphragm material: SUS316L, Hastelloy C,Tantalum
• Stability: ±0.2% URL/5 years
• Process connection: Tri-Clamp 1-1/2″, Tri-Clamp 2″or as required
Industry application
• Process control system
• Petroleum industry
• Chemical industry
• Food industry
