Brief Introduction

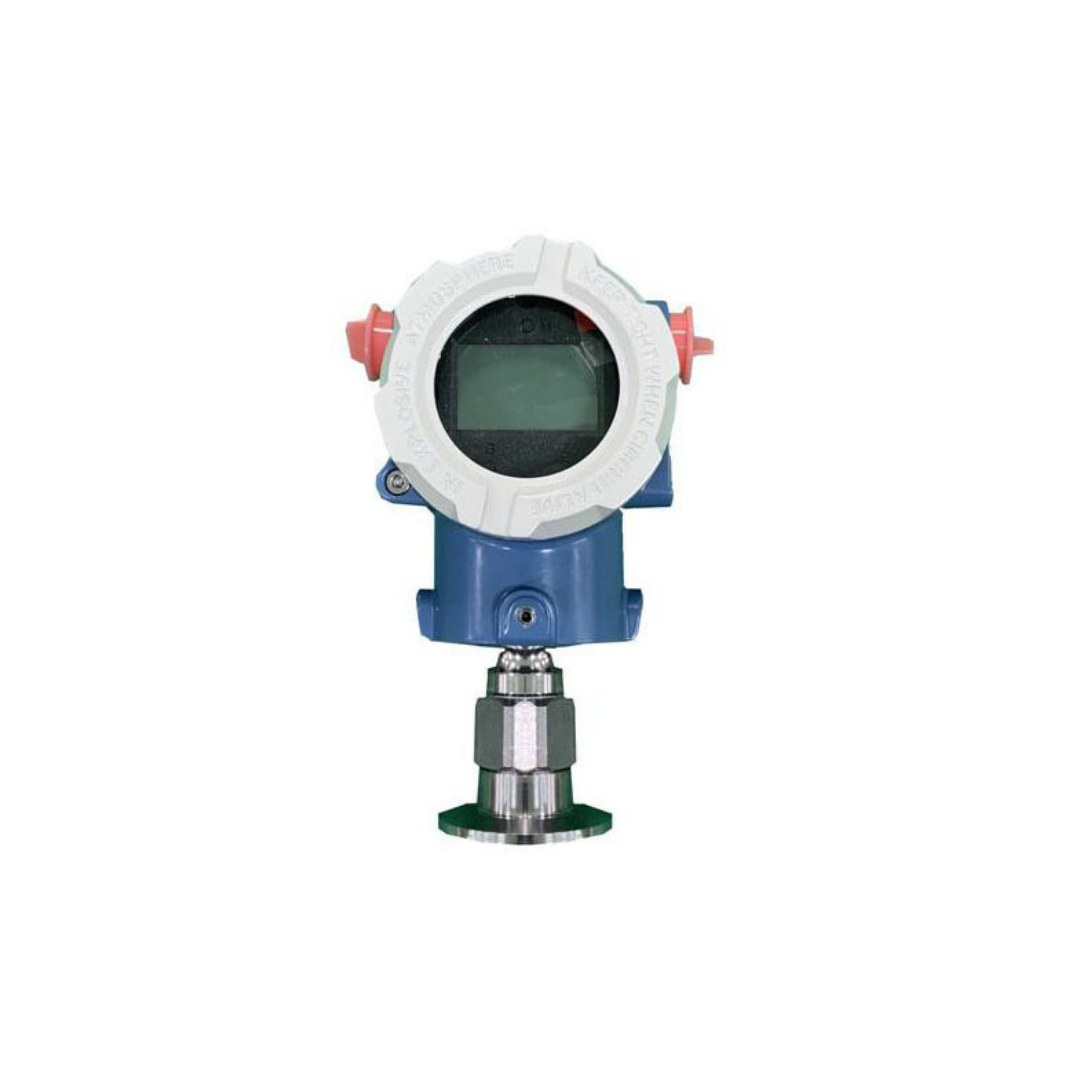

pressure transmitter/pressure transmitter is a measure of the difference between the two ends of the transmitter ,output standard signal ( 4 ~ 20mA) differential pressure transmitter and pressure transmitter with the general difference is that there are two pressure ports, the differential pressure transmitter is generally divided into positive and negative terminal end, under normal circumstances, Positive pressure side pressure should be greater than the negative pressure section.
Features
Process Fluid: Liquid, gas
Measuring range: 0-100MPa
Working Temperature: -25 to +95C
Current Output: 4 – 20 mA 2 wires Hart Protocol
Power Supply: 24VDC
Process connections:Tri-clamp,Thread,flange
Electrical Connections: 1/2”NPT or M20*1.5
Enclosure:IP65
Intrinsically Safe: ia II C T6
Explosion proof: d II B T5
Diaphragm material: SUS316L, Hastelloy C,Tantalum
Industry application
Process control system
Petroleum industry
Chemical industry
Power plant
